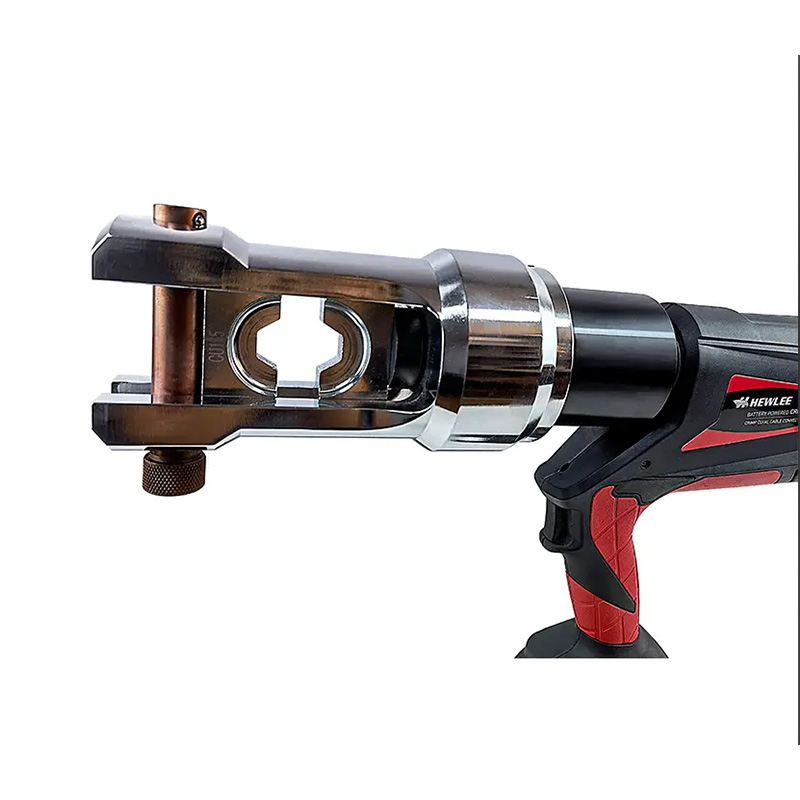

HL-630B Battery Powered Cu/Al Lugs Crimping Tool

WENZHOU HEWLEE  TOOLS CO., LTD. Home / Products / Electrical Tool / Crimping Tool / Battery Crimping Tool / HL-630B Battery Powered Cu/Al Lugs Crimping Tool

Technical Characteristics

HL-630B is a tool for crimping Cu/Al lugs with cables from 25-630 mm². It is powered by Li-ion, actuated by a motor, and controlled by M C U. With a high-pressure hydraulic system, it is a perfect tool to be used in electrical construction sites. The output force of HL-630B is around 200KN and the stroke is 62mm, which improves using efficiency of the lineman and workman in a certain.

1. High strength of forging, heat treatment

2. The head can be rotated 360° to adapt to different working situations

3. Good design cooling system can effectively prevent motor overheating

4.  One-button operation is easy to use, automatic pressure relief

5. Battery upgrade to 5.0 AH, two batteries can work in turn

6.  The special suitcase is clean and tidy inside, and it is easy to carry

7. The dies are made of high-strength alloy steel, after heat treatment, it is durable and beautiful

8. Easy to carry by hand and tidy inside

Specifications

Model HL-630B Battery Crimping Tool
Max. crimping force: 200KN
Crimping range: Cu 25-630 mm2
Stroke: 62mm
Battery: 18v DC 5.0Ah Li-Ion
Charging voltage: AC 110V〜240V
Charging time: Approx. 2 hours
Weight: 8.3kgs
Accessories:
Crimping die (mm2): 25,35,50,70,95,120,150,185,240,300,400,500,630mm²

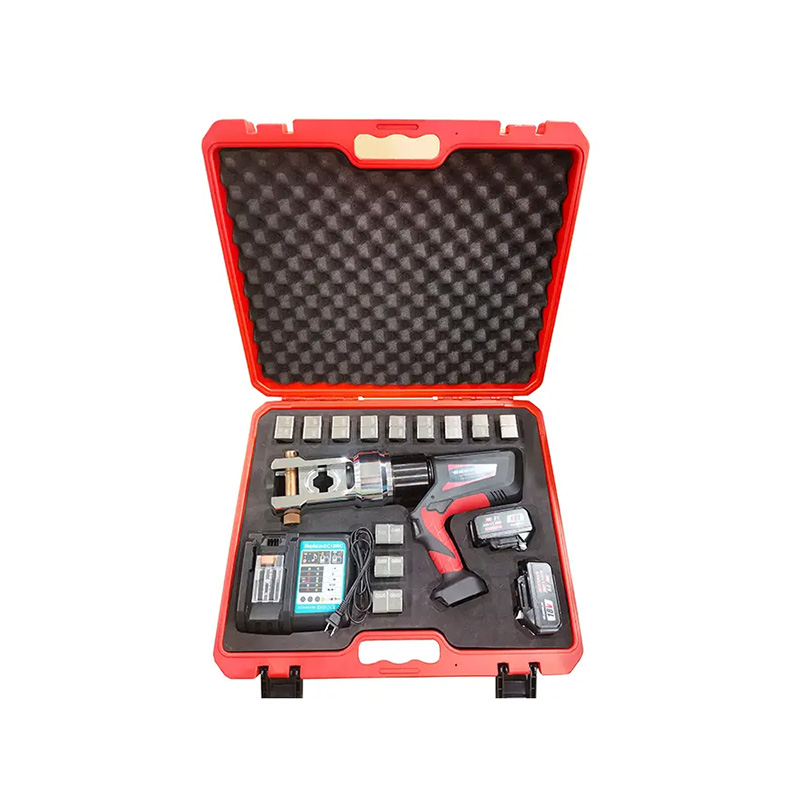

Package: One pc/Aluminum alloy case/Cardboard box
Crimping dies: 12 sets
Battery: 2 pcs
Charger: 1 pcs
Shoulder strap: 1 pc
Plastic case: 1 pc
