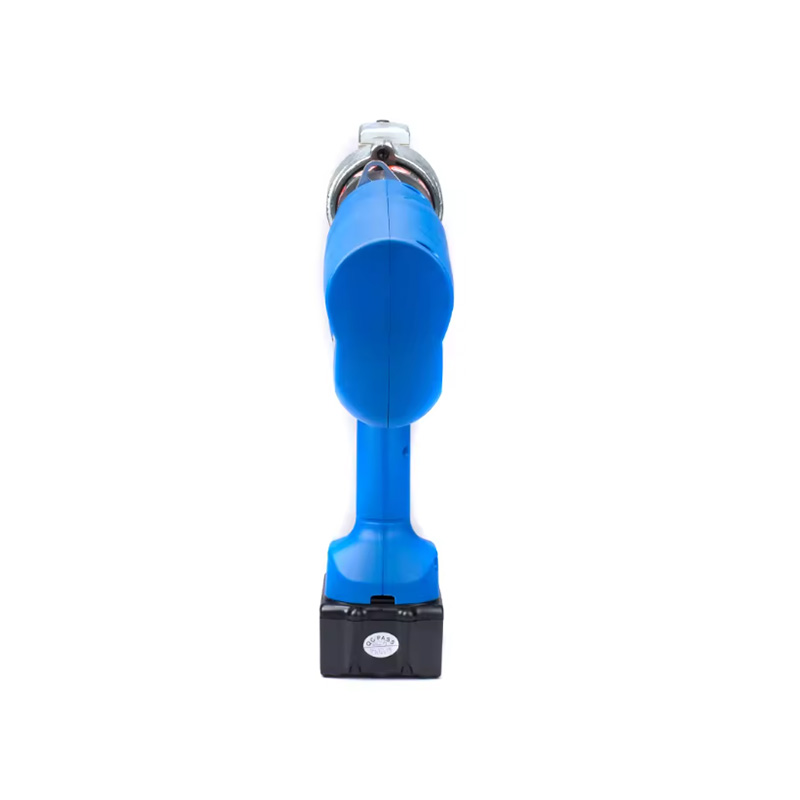

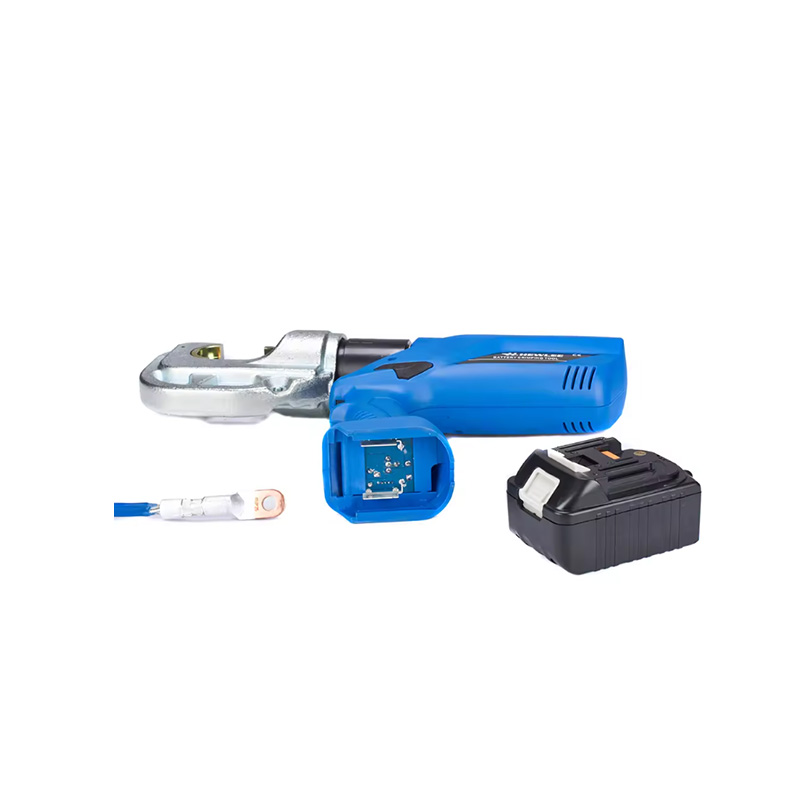

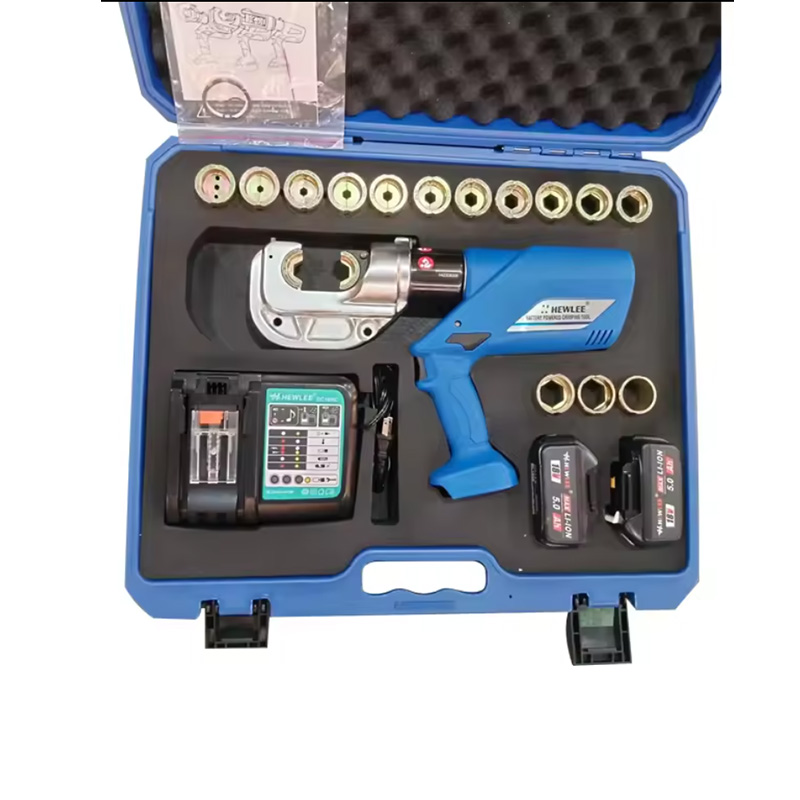

HL-400 Public Facilities Battery Powered Crimping Tool

HL-400 Battery Powered Crimping Tools are ideal for both overhead and underground applications for utility linemen and service crews. It also has wide crimping, and 360° free rotation of C-type clamp head, helping you operate more flexibly.

1. 360° rotating clamp head, which is suitable for various operations

2. OLED real-time display of various information

3. One key control, the operation is simple and convenient, one completes the operation

4. One key reset, when there is an error in the crimping process, you can easily reset by pressing the trigger

5. Battery upgrade to 4.0AH.Two batteries can work in turn

Function Description
1. image9 MCU - automatically detects the pressure during operation and provides security protect, shuts off the motor, and resets automatically after operation.

2. image10 Auto reset - release the pressure automatically, and retract the piston to the starting position when reaches the max output.

3. image11 Manual reset - can retract the position to the starting positioning in case of an incorrect crimp

4. image12 The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forward the connector and a slow crimping motion.

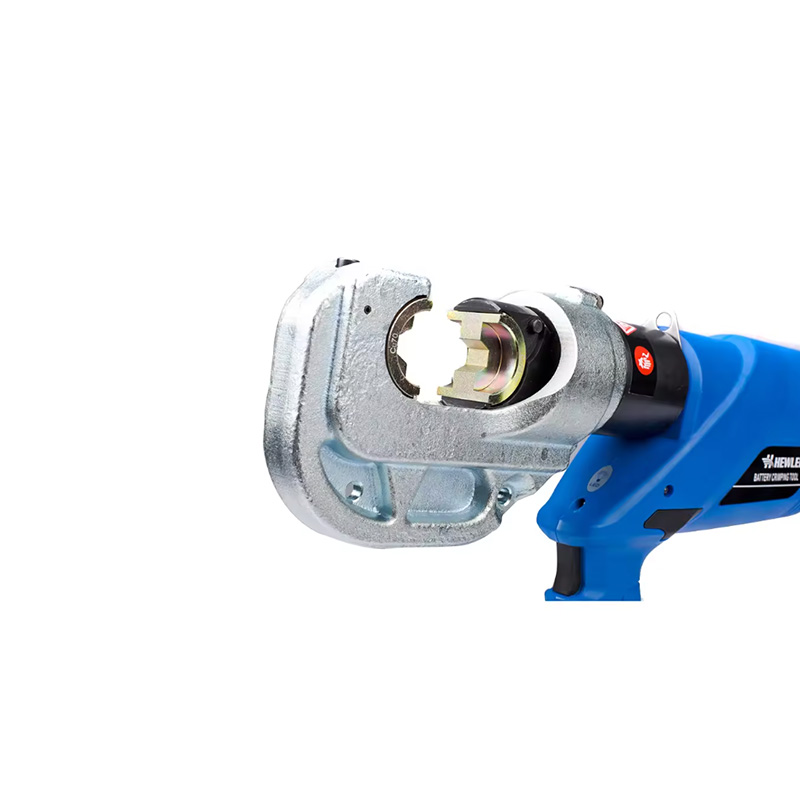

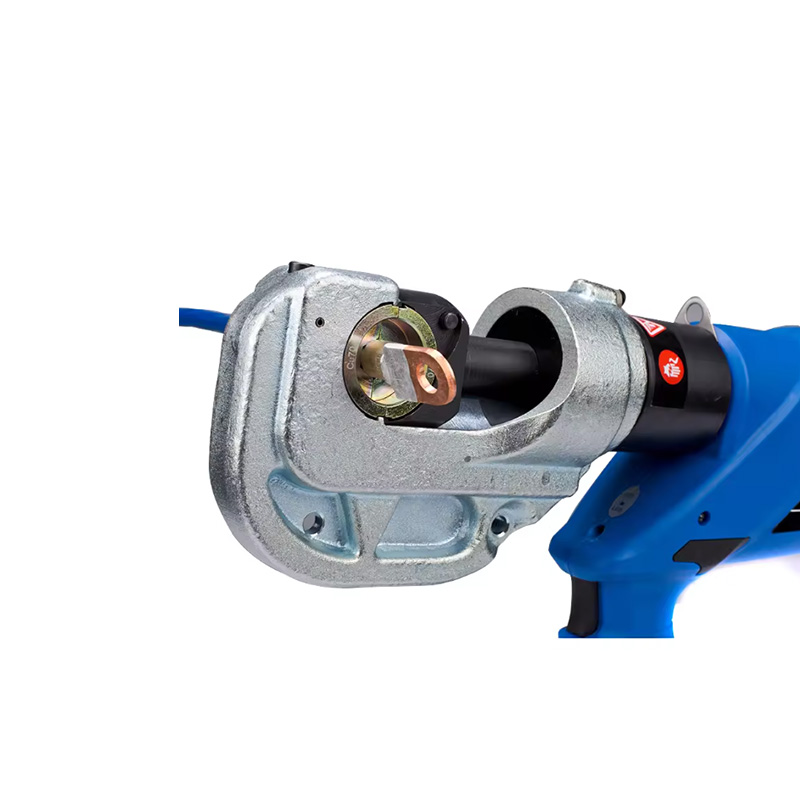

5. image13 The crimping head can be smoothly turned by 360° around the longitudinal axis to gain better access to tight corners and other difficult working areas.

6. image14 image15 One significant sound will be heard and a red display will flash if any error occurs.

A white LED illuminates the working space after activating the trigger. It automatically switches off 10 sec. after releasing the trigger.

7. image16 The whole tool is controlled by one trigger. This results in easy handling and a better grip compared to a two-button operation.

8. news-17 Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of nonoperation, the tool is always ready to operate. In addition, we see a lower power-weight ratio with 50% more capacity and shorter charging cycles compared to Ni-MH batteries.

9. image18 A Temperature sensor makes the tool stop working automatically when the temperature is over 60°C for a long time, the fault signal sounds, which means the tool can't continue working until the temperature is reduced to normal.
