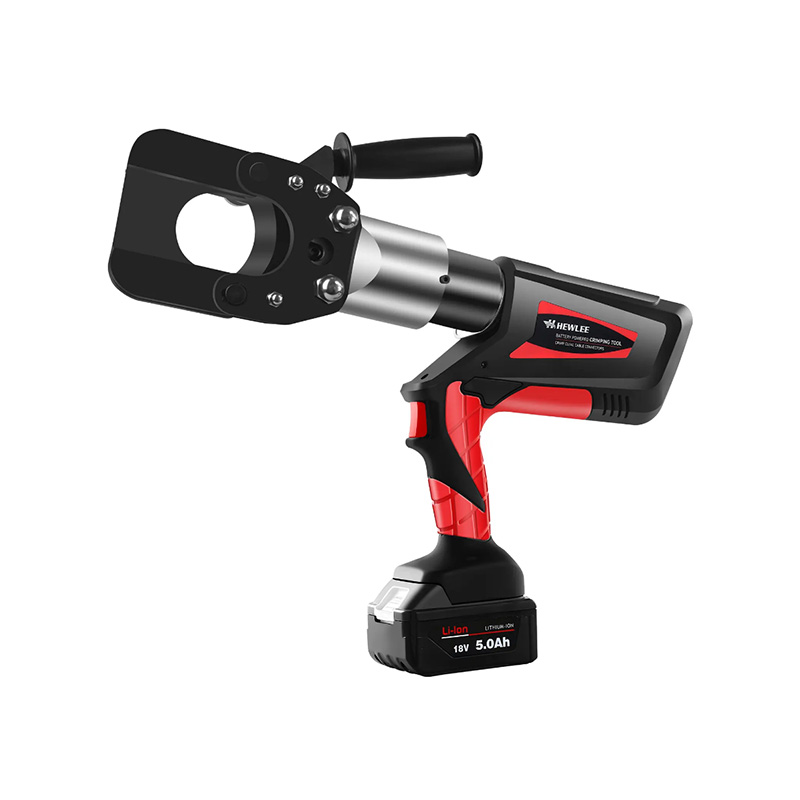

HL-45 Lithium Ion Battery Powered Cable Cutter

WENZHOU HEWLEE  TOOLS CO., LTD. Home / Products / Electrical Tool / Cable Cutter / Battery Cable Cutter / HL-45 Lithium Ion Battery Powered Cable Cutter

Technical Characteristics

HL-45 Battery Powered Cable Cutter is used for cutting copper/aluminum cables and armored cables. The utility model has the advantages of high efficiency, convenient operation, automatic retraction, 360° rotating cutting head, etc. It adopts lithium-ion power, a motor drive, single-chip microcomputer control, and a high-pressure hydraulic system. It is an ideal tool for electric power construction sites.

1. The Tool Head can be easily opened if remove Locking Pin is.

2. Guillotine-type blades for less jam.

3. Pistol Type Tool Body design for better balance and easy handling.

4. Two-button control concept for easy operation by one hand.

5. Manually retract the ram in case of need.

6. Automatically retract the ram to its original position when completely cutting.

7. Quickly stop the motor if the release switch.

8. Ram can hold position when the release switch is and can be partially retracted.

9. Powerful motor ensures quick crimp.

10. Li-ion battery with high capacity and requires short charging time.

11. LED illuminates the work area and indicates battery capacity and working condition.

Specifications

Mode HL-45 Battery Powered Cable Cutter
Max. cutting force 60KN
Crimping range Φ45mm (Cu/Al cable and armored cable)
Stroke 50mm
Hydraulic oil Shell Tellus T15#
Ambient temperature -10 - 40℃
Battery 18v 3.0Ah Li-Ion
Cutting cycle 5s-12s(depending on the connector size)
Cutting/charger Approx. 130 times (Cu150 mm2)
Charging voltage AC 100V〜240V; 50〜60Hz
Charging time Approx. 1.5 hours
OLED display display voltage, temperature, crimping times, errors information
Accessories
Blade 1 pcs
Battery 2 pcs
Charger 1 pcs
Sealing ring of cylinder 1 set
Sealing ring of safety valve 1 set
